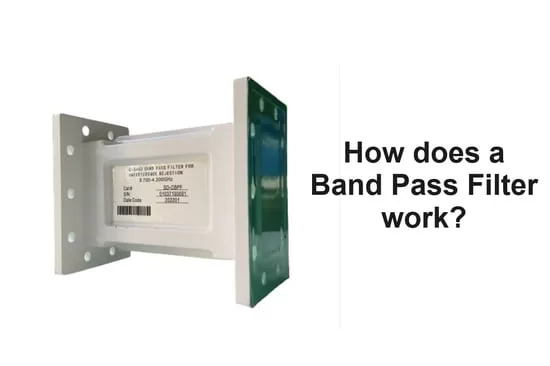

How does a bandpass filter work? BPF

A band pass filter is an electronic circuit that allows a certain range of frequencies to pass through it while attenuating or blocking frequencies outside of this range. The basic working principle of a bandpass filter involves the use of two filtering components – a high-pass filter (HPF) and a low-pass filter (LPF) – in series. The HPF allows high-frequency signals to pass through it while attenuating or blocking low-frequency signals, and the LPF allows low-frequency signals to pass through it while attenuating or blocking high-frequency signals. When these two filters are combined in series, the resulting circuit acts as a band pass filter that allows a specific range of frequencies to pass through it. The range of frequencies that are allowed to pass through the filter is determined by the cut-off frequencies of the high-pass and low-pass filters. The cut-off frequency is the point at which the filter begins to attenuate the signal, and it is determined by the values of the filter components, such as the resistors and capacitors. Bandpass filters are commonly used in a variety of electronic applications, including in audio and radio frequency (RF) circuits, to selectively pass only the desired frequency range and reject unwanted signals or the noise outside of this range.

then what is a 5G Band Pass Filter? –

A 5G bandpass filter works on the same principle as any other bandpass filter, but it is designed specifically to allow frequencies within the 5G frequency range to pass through it while attenuating or blocking frequencies outside of this range. In general, 5G bandpass filters are based on the surface acoustic wave (SAW) or bulk acoustic wave (BAW) technology. These filters use a piezoelectric material, such as quartz, to generate acoustic waves that propagate through the material and act as the filtering element. The basic structure of a SAW or BAW bandpass filter consists of a piezoelectric substrate with interdigital transducers (IDTs) placed on top of it. When an electrical signal is applied to the IDTs, they generate acoustic waves that propagate through the substrate and are reflected back by a reflector at the other end of the substrate. These waves interfere with each other, creating a standing wave pattern that acts as a filter. The frequency range that is allowed to pass through the filter is determined by the spacing and number of the IDTs, the thickness of the substrate, and other design parameters. By carefully designing the filter structure, it is possible to create a band pass filter that allows only the desired 5G frequency range to pass through while rejecting unwanted frequencies outside of this range. 5G bandpass filters are important components in 5G base station and mobile device designs, as they help to ensure that only the desired 5G signals are transmitted and received while reducing interference from other sources. – Read more

---

FAQs –

What is bandpass filters for 5G?

Bandpass filters for 5G are electronic components designed to filter out unwanted frequencies from 5G signals. They allow a specific range of frequencies to pass through while attenuating frequencies outside that range. These filters can be used in various wireless systems, including satellite TV, Wi-Fi, and radio systems, to help reduce the interference caused by 5G networks.

What are the types of 5G bandpass filters?

There are several types of 5G bandpass filters, including surface acoustic wave (SAW) filters, bulk acoustic wave (BAW) filters, ceramic filters, and cavity filters.

What are the two types of 5G bandpass filters?

The two main types of 5G bandpass filters are surface acoustic wave (SAW) filters and bulk acoustic wave (BAW) filters.

What is bandpass vs notch 5G filter?

A bandpass 5G filter allows frequencies within a specific range to pass through while attenuating or blocking frequencies outside that range. A notch 5G filter, also known as a band-stop filter, does the opposite by attenuating or blocking frequencies within a specific range while allowing frequencies outside that range to pass through.

What is the name of the bandpass 5G filter?

There are several different names for bandpass 5G filters, depending on the specific type and manufacturer. Some examples include “5G SAW filter,” “5G BAW filter,” “5G ceramic filter,” and “5G cavity filter.”

6G बैंडपास फिल्टर किसके लिए उपयोग किए जाते हैं?

6G बैंडपास फिल्टर का उपयोग सॅटॅलाइट LNB में किया जा सकता है ताकि 6GHz रेंज के भीतर सिर्फ विशेष फ्रीक्वेंसी को उस रेंज के बाहर ब्लॉक या उसमे से निकाला जा सके। हालाँकि, यह ध्यान रखना महत्वपूर्ण है कि 6G तकनीक अभी तक व्यापक रूप से उपलब्ध नहीं है, और 6G फ़िल्टर की Testing अभी भी जारी है।
