Requirement

  1. 2 Ku band Dish antenna of sizes minimum of 60 cm and 75 cm respectively
  2. 2 Ku-Band DTH LNB preferably with 0.1 noise, and min 60db power.
  3. a DiSEqC switch, with 4×1 or 8×1 ports
  4. a set-top box with DiSEqC 1.0 or 1.2 function.

Process of installation:

  1. First of all, install both the dth antenna firmly with a base.
  2. Track satellite GSAT 15 on the first dth antenna
  3. Track the SES 12 satellite on the second dth antenna for receiving Sri Lankan Free-To-Air TV channels on the freedth box.

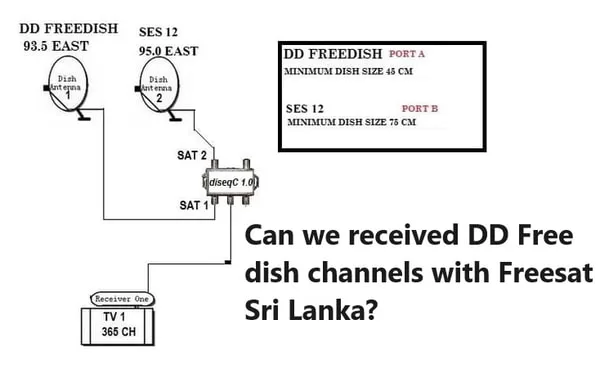

  4. After receiving signals from both satellites, now connect both dth antennae with the DiSEqC switch and RG6 Cable as shown below picture –
  5. Now in the set-top box select two satellites, or create two satellites in the installation menu.
  6. Now under antenna setup, set the LNB freq as universal (9750-10600) for both.
  7. If you have fitted the first DTH antenna to LNB 1 in the DiSEqC Switch near the antenna and the second DTH antenna to LNB 2, then inside the set-top box also put the same port in the setting of the first satellite whose signal you want to receive. Is. Means LNB 1 in Switch = port 1 or LNB 1 in set-top box top only.
  8. Now scan both the satellite individually or together if a multi-satellite search option is available.

after the scan is carried out successfully, you may watch both satellite FTA channels together in the single set-top box. The same trick may be used for the C-Band Dish antenna.

Check others satellite TV switches or splitter-related posts.

Note – This post was very old, in which we told how to run DD Freedth and ABS free dish on the single set-top box. Today we have updated it from ABS to SES 12 as ABS1 has been discontinued. Now you can do this trick for other satellites.

FAQs –

Can we receive DD Free dish channels with Freesat Srilanka?

Yes, you can receive it using the HEVC 10-bit FTA channel.

Which set-top box can receive Free dish and Freesat channels?

You should have H.265/HEVC 10-bit HD free-to-air Set-top box.

What is the Freesat Sri Lanka TV channel list?

You can find the Free sat Srilanka TV channels list here.

Which satellite is Freesat on?

The Freesat dth is available on SES 12 satellite at 95.0 degrees east.
